In stock

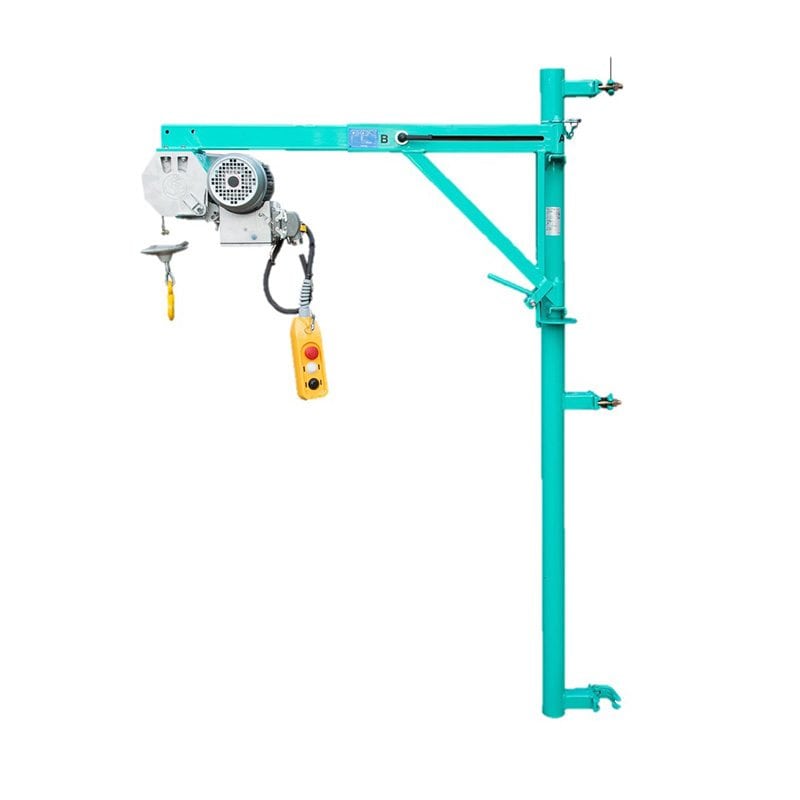

Scaffold Hoist 200KG | IMER TR225N | Complete Hoist with Attachment

SKU:1140627

£1,593.00 GBP

Sale Sold out

Shipping calculated at checkout.

Style 110V 240V

Standard Equipment

• Work Positioning Lever
• IP67 Plug
• 31m Wire Rope
• Motor Speed 1360/1380rpm
• Trolley available for use with a Gantry
• Upper Limit Safety Device
• Self-Braking Motor
• Telescopic Frame can be extended from 720mm to 1120mm
• Includes TR225N Pendant
• Comes with 1.8m Scaffold attachment

The Unique Telescopic Scaffold Hoist.

Our Flagship Lifting Solution.

This item qualifies for FREE DELIVERY!

The TR225N heavy duty IMER Scaffold Hoist is designed for use in industrial or construction applications and is the perfect choice by many of the leading rental companies.

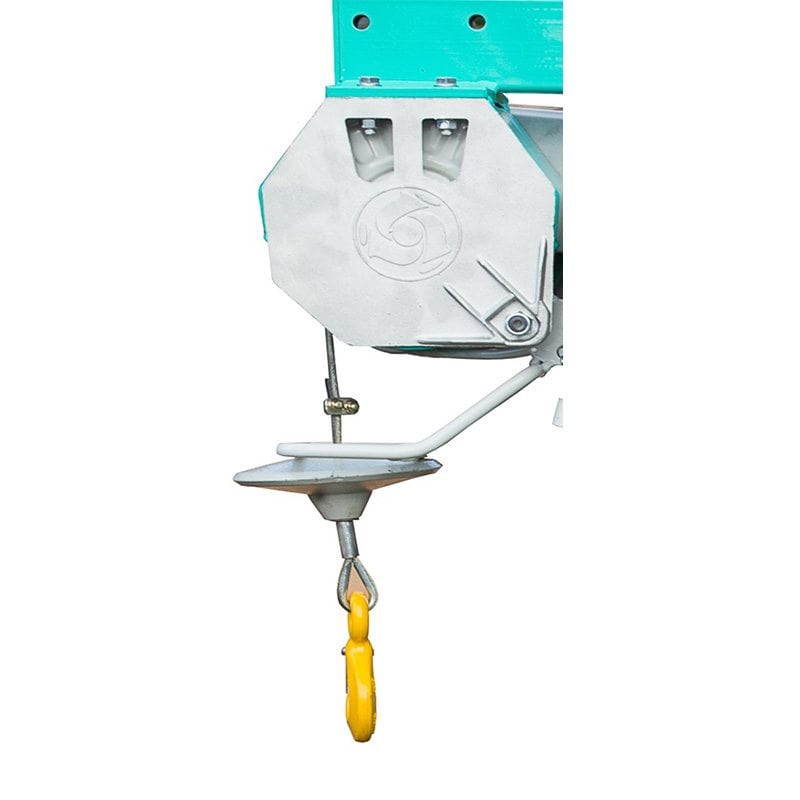

Fitted with front loading drum – this reduces the risk of bunching when used on scaffolding that is not perfectly straight.

This Scaffold Hoist has a lifting capacity of 200kg and a lifting height of 30m.

Next Day Delivery available if ordered before 2pm. UK Mainland only.

TR225N
Maximum Capacity	kg	200
Av. Full load lifting speed	m/min	19
Max. working height	m	30
Ø steel rope	mm	5
Rope length	m	31
Electric power supply	V / Hz	230 / 50 Sph 110 / 50 Sph
Motor power rate	kW	0.75
Motor speed	rpm	1380
Running current 230V (110V)	A	7.2 (14)
Machine weight	kg	46
SPL in operator’s position	dB(A)	<70
Dimensions w/l closed (open)/h	mm	330/770(1170)/520
