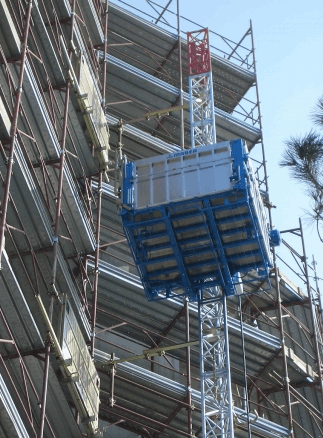

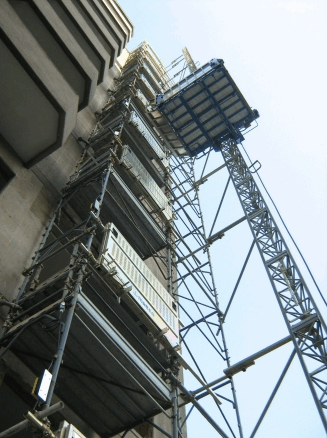

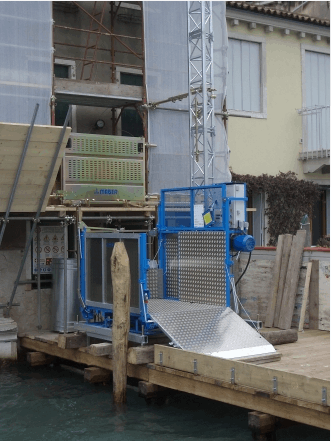

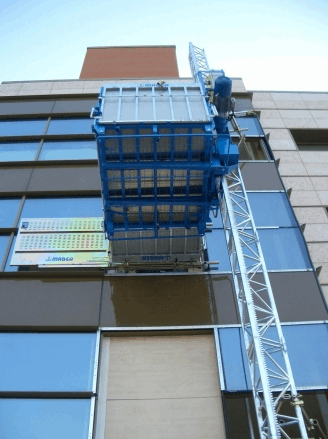

MABER MBC 1000/150 [1000kg] Transport Platform

Transport Platforms for the Moving of Persons and Materials.

Transportation platform for persons and materials, with a capacity of 1,000kg. Force limiting device included; double lifting speed 12/24 m/min; equipped with an anti-crushing system like all MABER transportation platforms. Machine in conformity to European Regulation EN 1671:2018.

Please call our Sales Team on 01902 498915 for a quote, as this cannot be ordered directly through the website.

Technical Features

Maximum Anchored Height: 150M

Capacity: 1000kg

Maximum Distance between Anchorage Points: 6M

Width of Cage: 1400mm

Length of Cage: 1750mm

Voltage Three Phase: 400V/50hZ

Engine Power: 4/8kW

Lifting Speed: 12m/24min

 Patented Mechnical Emergency Brake

PDF SPEC SHEET
