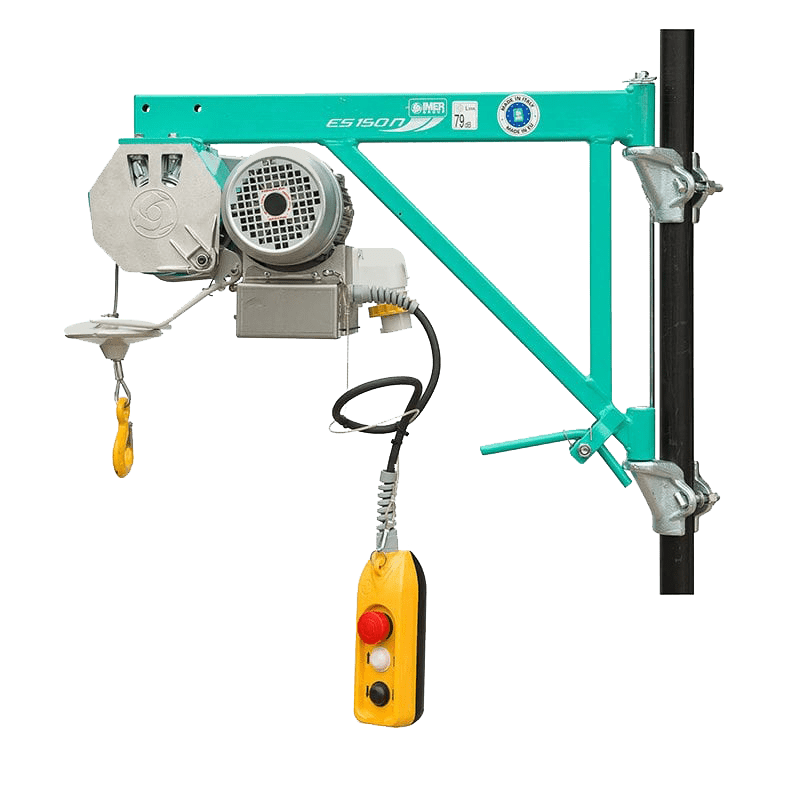

Scaffold Hoist 150KG | IMER ES150N 110V | High Capacity 30M Wire Rope
Scaffold Hoist 150KG | IMER ES150N 110V | High Capacity 30M Wire Rope
SKU:1140909
Regular price
£986.00 GBP
Regular price
Sale price
£986.00 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Standard Equipment
Standard Equipment
• IP67 Plug
• Trolley available for use with a Gantry
• Upper Limit Safety Device
• Direct Control with 3-Pushbutton IP65 1.5 m
• Pendant Control
• Scaffold Clamps
• Self-Braking Motor
This Scaffold Hoist qualifies for FREE DELIVERY!
Next Day Delivery available on scaffold hoists if ordered before 2pm. UK Mainland only.
Excludes weekends and Bank Holidays.
Maximum Lifting Capacity | 150kg
Max Working Height | 30m
Rope Length | 31m
Motor | 110v
|
ES150N |
||
|
Maximum Capacity |
kg |
150 |
|
Av. Full load lifting speed |
m/min |
19 |
|
Max. working height |
m |
30 |
|
Ø steel rope |
mm |
5 |
|
Rope length |
m |
31 |
|
Electric power supply |
V / Hz |
110 / 50 Sph |
|
Motor power rate |
kW |
0.45 |
|
Motor speed |
rpm |
1310 |
|
Running current 110V |
A |
14 |
|
Machine weight |
kg |
39 |
|
SPL in operator’s position |
dB(A) |
<70 |
|
Dimensions w/l/h |
mm |
330/770/520 |
